AX-0MVS-65-PFA-PFA
1550nm Ultra-Broadband X-cut Lithium Niobate Intensity Modulator with extended frequency operation to ~65GHz
· Operating Wavelength: 1550nm
Insertion loss: ~ 4.0 - 4.5 dB (typical); < 5 dB(max)
Modulation Port Vπ (@1 GHz): ~ 4.5 V (typical):<5.0 V (max)
3dB response ~25-30 GHz, with extended frequency operation to 65GHz (~6dB) with no sharpresponse dips
Optical Null Depth (@DC) (Channel Crosstalk): >18-20 dB
S11(0.13 to 20 GHz): < -10 dB
OpticalReturn Loss: > 40 dB
Package Dimensions: 65x8.9x9.2mm3 (Small Form Factor)
RFConnector: female 1.85mm (or V-connector)
DC biasport: female SMA
Input Fiber: PM, ~1 meter long (900um loose tube)
Output Fiber: PM, ~1 meter long (900um loose tube)
Optical Connectors: FC/APC (slow axisaligned to the narrow key)
AX-0MVS-65-PFA-PFA-LV
1550nm Ultra-Broadband X-cut Lithium Niobate Intensity Modulator with extended frequency operation to ~65GHz
· Operating Wavelength: 1550nm
Insertion loss: ~ 4.0 - 4.5 dB (typical); < 5 dB(max)
Modulation Port Vπ (@1 GHz): ~ 4 V (typical): <4.3V (max)(-LV version)
3dB response ~25-30 GHz, with extended frequency operation to 65GHz (~6dB) with no sharpresponse dips
Optical Null Depth (@DC) (Channel Crosstalk): >18-20 dB
S11(0.13 to 20 GHz): < -10 dB
OpticalReturn Loss: > 40 dB
Package Dimensions: 65x8.9x9.2mm3 (Small Form Factor)
RFConnector: female 1.85mm (or V-connector)
DC biasport: female SMA
Input Fiber: PM, ~1 meter long (900um loose tube)
Output Fiber: PM, ~1 meter long (900um loose tube)
Optical Connectors: FC/APC (slow axisaligned to the narrow key)
AX-0MVS-65-PFA-PFA-1310nm
1310nm Ultra-Broadband X-cut Lithium Niobate Intensity Modulator with extended frequency operation to ~65GHz
Operating Wavelength: 1310nm
? Insertion loss: ~ 4.5 dB (typical), < 5dB (max)
? Modulation Port Vπ (@1 GHz): ~ 4.5 V
? Large Bandwidth: ~30-35GHz (usable frequency response to 65GHz with no sharp response dips)
RF response may be down to ~5-6 dB @ ~60 GHz
? Optical Null Depth (@DC): > 18 dB
? S11 (0.13 to 20 GHz): < -10 dB
? Optical Return Loss: > 40 dB
? Package Dimensions: 65x9.2x9.2mm3 (Small Form Factor)
? RF Connector: female 1.85mm (or V-connector)
? DC bias port: female SMA
? Input Fiber: PM, ~1 meter long (900um loose tube)
? Output Fiber: PM, ~1 meter long (900um loose tube)
? Optical Connectors: FC/APC (slow axis aligned to the narrow
AX-0MVS-65-PFA-PFA-LV-1310
Low Vpi 1310nm Ultra-Broadband X-cut Lithium Niobate Intensity Modulator with extended frequency operation to ~65GHz
· Operating Wavelength: 1310 nm
· Insertion loss: ~ 4 to 4.5 dB (typical); < 5 dB (max)
· Modulation Port Vπ (@1 GHz): ~ 3.5 (typical): ~ 4 V (max) (-LV version)
· 3dB response ~25 GHz, with extended frequency operation to 65GHz (~6dB) with no sharp response dips
· Optical Null Depth (@DC): > 18-20 dB
· S11 (0.13 to 20 GHz): < -10 dB
· Optical Return Loss: > 40 dB
· Package Dimensions: 65x8.9x9.2mm3 (Small Form Factor)
· RF Connector: female 1.85mm (or V-connector)
· Input Fiber: PM, ~1 meter long (900um loose tube)
· Output Fiber: PM, ~1 meter long (900um loose tube)
· Optical Connectors: FC/APC (slow axis aligned to the narrow key)

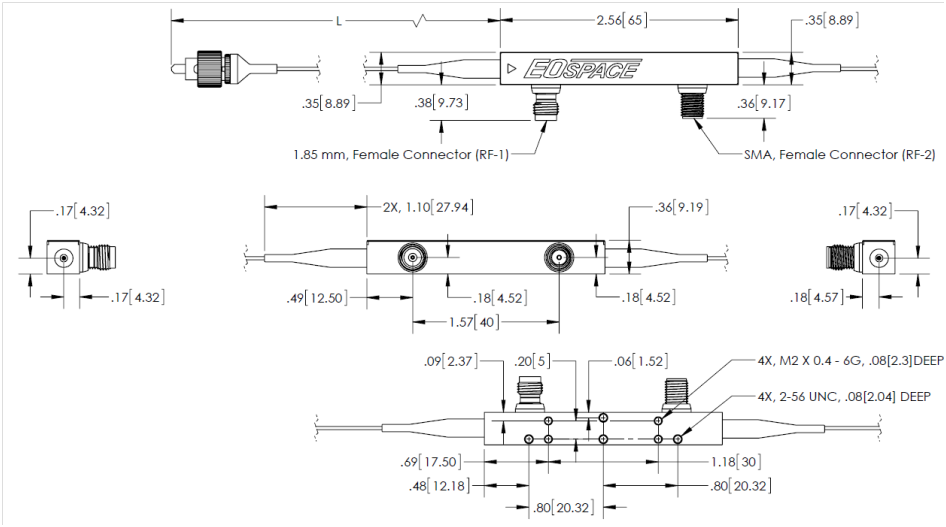

Drawing（mm）:
