產品介紹：

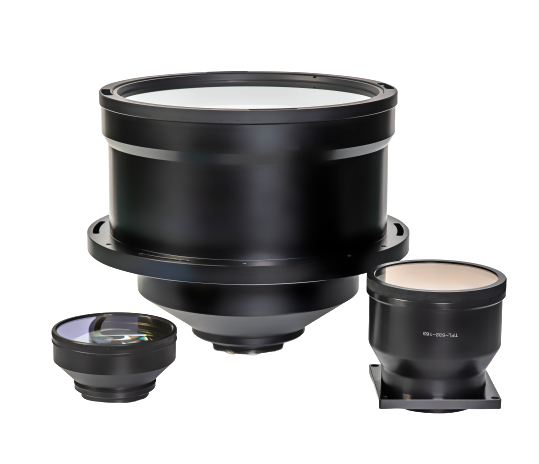

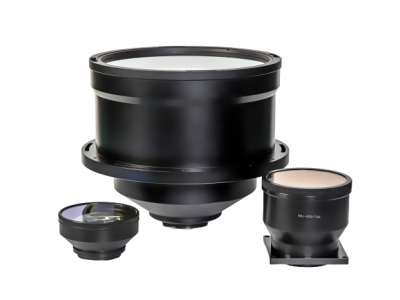

CVI的場鏡，廣泛應用于全球高端激光加工制造行業。產品具有行業領先的技術和質量，目前可提供高達300x300mm的激光精加工幅面的標準產品。
產品特點：
l 各種波長 237-1064nm波長范圍
l 各種掃描幅面
l 高質量
產品應用：
l 激光切割
l 打孔
l 開槽，焊接
l 電池加工
l 線路板微處理
l MEMS芯片表面處理
產品參數：
UV 343/355 遠心場鏡 | ||||||||
型號 | 應用 | 波長[nm] | 焦距 [mm] | 掃描區域 [mm x mm] | EPD φspot(μ | Telecentricity | 工作距離 [mm] | 安裝螺紋 |
TEL-355-70-40 | via/thru hole drilling | 355 | 70 | 25x25[36?] | 8mm/10um | <1.0° | 78.6 | M85xP1.0 |
TEL-355-103 | via/thru hole drilling | 355 | 103 | 50*50 [70?] | 9mm/10um | <1.2° | 143 | M85XP1.0 |
TEL-355-165 | depaneling/singulation | 343/355 | 165 | 90*90 [127?] | 10mm/11um | <1.0° | 226 | M85xP1.0 |
TEL-355-225 167* | film/coverlay | 343/355 | 220 | 118x118 [167?] | 14mm/13um | <1.5° | 280 | M85xP1.0 |
TEL-355-265* | cell/coverlay/film cut | 343/355 | 265 | 130x130 [186?] | 10mm/22um | <1.0° | 353 | M85xP1.0 |
TEL-355-254 | cell/coverlay/film cut | 355 | 254 | 160x160 [231?] | 14mm/19um | <1.5° | 348 | M85xP1.0 |
TEL 343 255 | CELL, COVER LAY, LASER CUT | 343 | 255 | 160x160 [231?] | 14mm/19um | <1.5° | 348 | M85xP1.0 |
TEL-355/343-320 | cell/coverlay/film cut | 343/355 | 320 | 180x180 [254?] | 14mm/19um | <1.5° | 422 | M85xP1.0 |
TEL-343/355-330 | cell/coverlay/film cut | 343/355 | 330 | 200 x 200 [284?] | 14mm/14um | <1.5° | 440 | M85xP1.0 |
TEL-343-356 325 | cell/coverlay/film cut | 343/355 | 356 | 230 x 230 [325?] | 14mm/22um | >1.0° | 497.5 | M140xP2.0 |
1030-1070nm f-Theata/Telecentric Scan Lenses | ||||||||
Part Number | APPLICATION | wavelength [nm] | Focal length [mm] | Scan Area [mm x mm] | EPD φspot | Telecentricity | Working Distance [mm] | Mounting Thread |
TEL 1064 160 | Slitting/ Tab Notching | 1030-1080 | 160 | 75X75 [106?] | 20mm/22um | <3.1° | 209.5 | M85XP1.0) |
TEL 1064 167 | Laser Cutti ng | 1030-1080 | 167 | 85X85 | 20 | <4.4° | 218 | M85xP1.0 |
FTL1064 254 20D | 2~4kW sin glemode welding | 1030-1080 | 254 | 123X123 [174?] | 20mm/35um | <6.8° | 327 | M85xP1.0 |
FTL1064 254 30D | 2~4kW singlemode welding | 1030-1080 | 254 | 123X123 [174?] | 30mm/15um | <6° | 340 | M85xP1.0 |
FTL 1080 306 W130 | 2~4kW singlemode welding _ | 1030-1080 | 306 | 160X160(223?] | 28mm/15um | <10.8° | 376 | M110xP1.0 |
FTL 1064 420 | 2~4kW sin glemode welding | 1030-1080 | 420 | 200X200(282?] | 30mm/22um | <10.2° | 523 | M85xP1.0 |
TEL 1064 420 326 | LARGE AREA LASER WELDING | 1030-1080 | 420 | 23Ox23O[326?] | 30mm/30um | <4° | 647.7 | M110xP1.0 |
FTL 1064 254M OPTICAL GLASS | 1030-1080 | 254 | 184X184 [258?] | 20 | <16° | 296.5 | M85xP1.0 | |
FTL 1064 330 240 | 1030-1080 | 330 | 165x165 [234?] | 30 | <8.7° | 411.9 | M85xP1.0 | |
515/ 532nm f-Theata/Telecentric Scan Lenses | ||||||||
Part Number | APPLICATION | wavelength | Focal length | Scan Area | EPD φspot | Telecentricity | Working | Mounting |
[nm] | [mm] | [mm x mm] | Distance [mm] | Thread | ||||
FTL 515 70 40 | 515nm | 70 | 28x28[40?] | 14 | <1° | 82.2 | M85xP1.0 | |
FTL 532 110 | 532nm | 110 | 40x40 [57?] | 14 | <2° | 149 | M85xP1.0 | |
TEL 532 163 | 532nm | 163 | 80x80 [113?] | 10 | v 1.1° | 227 | M85xP1.0 | |
FTL 515 250 | 515nm | 250 | 162x162(230?] | 10 | <5° | 319 | M85xP1.0 | |
FTL 532 250 | 532nm | 250 | 165x165 [233?] | 20 | 300.4 | M83.5XP1.0 | ||
FTL 532 350 327 jenar330-532-336 | 532nm | 350 | 230x230 [327?] | 16 | 381 | M85xP1.0 | ||
FTL T 32 255 | 532 | 255 | 165X165 [254,55?] | 20 | <16° | 272.8 | M85XP1.0 | |
TEL 532 260 182 | 532nm | 260 | 170X170 [240?] | 20 | <1.5° | 360 | M85xP1.0 | |
266nm / f-theta/ Telecentric Scan Lenses | ||||||||
Part Number | 入 | Focal length | Scan Area | CA φspot | Telecentricity | Working | Mounting | |
[nm] | [mm] | [mm x mm] | Distance [mm] | Thread | ||||
FTL 266 255 237 | 266 | 255 | 168*168 [237] | 10/16um | <1° | M85xP1.0 | ||
