產品簡介：

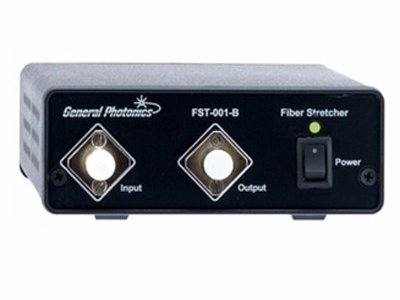

The FST-001-B is a piezo-driven fiber stretcher with an optical delay range of up to 3 mm. The device, including the piezo driver, is packaged in a metal enclosure. Each of the four piezos can be controlled independently, allowing high resolution or large stroke. Piezos can be controlled with an analog signal or a 12-bit TTL signal. Under analog control, the driving circuit acts as a 4-channel voltage amplifier with 30V/V amplification.

主要參數：

Optical Path Delay Range: > 3 mm (in air)

Phase Change Sensitivity: 810 π/V at 1550nm, (analog input, using 4 channels)

Internal Voltage Amplification: 30 V/V

Max. Voltage On PZT: 140 volts

Resonance Frequency: 2.2 kHz ± 0.3 kHz

Insertion Loss 1: < 0.2 dB

Insertion Loss Variation: < 0.1 dB

Return Loss: > 65 dB

PDL: < 0.05 dB

Fiber Type: SMF-28 (others available by request)

Wavelength Range2: 1260 to 1620 nm

Maximum Optical Power: >1000 mW

Analog Input (4 channels): 4.7 volts max. for each channel

Digital Input: 20-pin digital connector to accept 12 bit TTL control signal.

Operating Temperature: 0 to 50 °C

Storage Temperature: -40 to 80 °C

Dimensions: 170 (L) × 106 (W) × 38.6 (H) mm

Notes

Values given without connectors.

With SMF-28 fiber.
