產(chǎn)品簡介：LIEKKIactivefibersareavailablewitheitherYtterbium(Yb)orErbium(Er)asthemaindopant.YbdopedfibersareavailableoverarangeofdopantconcentrationlevelsrangingfromYb700toYb1200.TheYbnumberreferstothenomin
產(chǎn)品簡介：

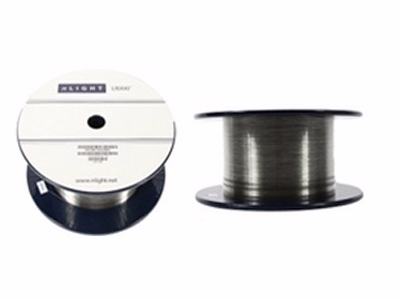

LIEKKI active fibers are available with either Ytterbium (Yb) or Erbium (Er) as the main dopant.
Yb doped fibers are available over a range of dopant concentration levels ranging from Yb700 to Yb1200. The Yb number refers to the nominal small signal absorption of the core at the 976nm peak wavelength in dB/m. Yb fibers are available for single-clad core pumping applications as well as double clad cladding pumping applications over a broad core diameter range. Yb fibers are available both as PM and non-PM variants as standard products.
產(chǎn)品型號：
|
型號 |
市場 |
纖芯直徑 |
光纖摻雜 |
|
LIEKKI™ Yb1200-4/125 |
Fiber Laser Solutions |
4um / 125 |
Yb - 1200 |
|
LIEKKI™ Yb700-6/125-PM |
Fiber Laser Solutions |
6um / 125 |
Yb - 700 |
|
LIEKKI™ Yb1200-6/125 |
Fiber Laser Solutions |
6um / 125 |
Yb - 1200 |
|
LIEKKI™ Yb1200-10/125 |
Fiber Laser Solutions |
10um / 125 |
Yb - 1200 |
|
LIEKKI™ Yb1200-12/125 |
Fiber Laser Solutions |
12um / 125 |
Yb - 1200 |
|
LIEKKI™ Yb1200-12/250 |
Fiber Laser Solutions |
12um / 250 |
Yb - 1200 |
|
LIEKKI™ Yb700-20/125 |
Fiber Laser Solutions |
20um / 125 |
Yb - 700 |
|
LIEKKI™ Yb800-20/400 |
Fiber Laser Solutions |
20um / 400 |
Yb - 800 |
|
LIEKKI™ Yb1200-20/125 |
Fiber Laser Solutions |
20um / 125 |
Yb - 1200 |
|
LIEKKI™ Yb1200-20/400 |
Fiber Laser Solutions |
20um / 400 |
Yb - 1200 |
|
LIEKKI™ Yb700-25/250 |
Fiber Laser Solutions |
25um / 250 |
Yb - 700 |
|
LIEKKI™ Yb1200-25/250 |
Fiber Laser Solutions |
25um / 250 |
Yb - 1200 |
|
LIEKKI™Yb700-30/250 |
Fiber Laser Solutions |
30um / 250 |
Yb - 700 |
|
LIEKKI™ Yb1200-30/250 |
Fiber Laser Solutions |
30um / 250 |
Yb - 1200 |
