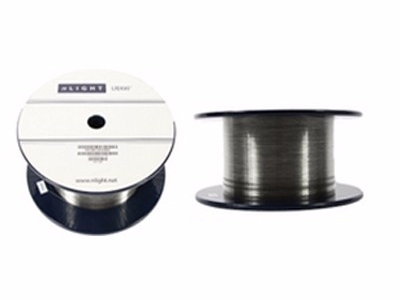

單模高吸收摻鐿光纖
LIEKKI™Yb1200-4/125–SingleModeYtterbiumDopedFiberLIEKKIYb1200-4/125fibersarehighlydopedsinglemodeytterbiumfibersforlow-noise,low-nonlinearitypreamplifiersandlasers.Theirtelcom-likegeometry
- 產(chǎn)品名稱： 單模高吸收摻鐿光纖
- 合作廠商： LIEKKI?
詳細(xì)信息
LIEKKI™ Yb1200-4/125 – Single Mode Ytterbium Doped Fiber
LIEKKI Yb1200-4/125 fibers are highly doped single mode ytterbium fibers for low-noise, low-nonlinearity preamplifiers and lasers. Their telcom-like geometry makes them compatible with low-cost pump diodes and standard single mode passive fibers. They make an excellent preamplifier in a fiber amplifier chain with double cladding fiber acting as power amplifier.
Typical Device Performance
|
Optical Fiber |
LIEKKITM Yb1200-4/125 |
|
|
Mode Field Diameter at 1060nm |
µm |
4.4 ± 0.8 |
|
Peak Core Absorption at 976 nm |
dB/m |
(1200) |
|
(nominal) |
||
|
Cladding Absorption at 920 nm |
dB/m |
(280) |
|
Core Numerical Aperture (nominal) |
0.2 |
|
|
Cut-off Wavelength |
nm |
1010 ± 70 |
|
Geometrical and Mechanical |
||
|
Core Concentricity Error |
µm |
< 0.7 |
|
Cladding Diameter |
µm |
125 ± 2 |
|
Cladding Geometry |
Round |
|
|
Coating Diameter |
µm |
245 ± 15 |
|
Cladding Material |
High Index Acrylate |
|
|
Proof Test |
Kpsi |
> 100 |
Typical Performance Data
