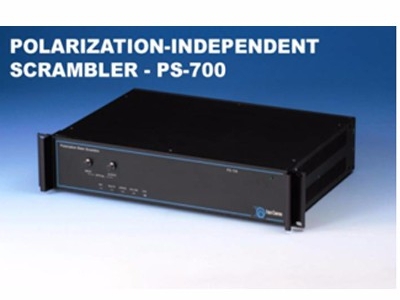

FiberControl’s polarization-independent polarization state scrambler, PS-700, provides
high speed scrambling of optical signals with low insertion loss and is independent of the
input state-of-polarization. This robust all fiber design provides a wide optical bandwidth,
and enables the use of high signal powers, thereby making it suitable for DWDM
applications.
Our unique RF-modulated format provides near pseudo-random scrambling as indicated by
the broad RF electrical spectral response, unlike other scramblers, whose spectral response
reveals well-defined resonances. The high-speed scrambling provides coverage over a
large portion of the Poincaré sphere. Fully Patented.
Features:
◆Polarization independent
◆Broad optical bandwidth
◆High optical power throughput
◆Low back-reflection, low insertion loss
◆Connectorized or fiber input/output
◆Instant on (no warm-up)
◆Wide temperature range
Applications:
◆Component level PDL measurements
◆Sub-system PDL testing
◆Reduce polarization-dependent effects within EDFA optical transmission systems(PDG, PDL)
◆Reduce PDL in test-bed measurements of third-party optical equipment
Specifications:(optical, line power, physical)
|
Optical |
|
|
Optical Input/Output |
FC/UPC, FC/APC, or Bare Fiber |
|
Poincaré Sphere Coverage |
80% to 95% est. (near pseudo-random) |
|
Degree-of-Polarization |
< 5% |
|
Insertion Loss (typ.) |
< 0.75 dB |
|
Return Loss |
>50 dB, > 55 dB (FC/UPC, FC/APC, or bare fiber) |
|
Operating Wavelength |
1300 nm – 1610 nm |
|
Maximum Optical Input ‡ |
+30 dBm |
|
Scrambling Rate† |
4 MHz |
|
PDL (typ.) |
<0.05 dB |
|
Residual AM Modulation |
<0.5% |
|
Fiber Type |
Lucent Technologies, True Wave™ |
|
Line Power / Temperature |
|
|
Operating Temperature |
-10°C - +35°C |
|
Electric Input Power |
100/120/220/240 ±10% VAC |
|
Line Frequency |
50/60 Hz |
|
Power Receptacle |
IEC 320 |
|
Physical |
|
|
Physical Dimensions |
8.9 x 30.5 x 42.5 cm (3 ½” x 12’’ x 16 ¾ ’’) |
|
Rack Mount |
Standard 18 ½’’ |
|
Weight |
6.58 Kg (14.5 lb.) |
Note:
- All measurements @ 1550nm
‡ SRS limit (SBS limit is determined by user’s spectral broadening of sources)
† At the –10dB point from near uniform electrical rf spectral distribution
