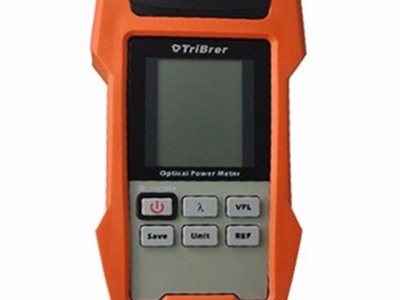

光功率計
ProductIntroduction：FEATURES:●850/1300/1310/1490/1550/1625nm;●FC,SC,STadaptersand2.5mmUPP●Datastorage●Datatransfer(optional)●7X24real-timetestonPC;(optional)●Built-inVFL(optional);●Energysavemode;●Ref
- 產(chǎn)品名稱： 光功率計
- 合作廠商： 波威
詳細信息
Product Introduction：
FEATURES:
●850/1300/1310/1490/1550/1625nm;
●FC, SC, ST adapters and 2.5mm UPP
●Data storage
●Data transfer (optional)
●7X24 real-time test on PC; (optional)
●Built-in VFL (optional);
●Energy save mode;
●Reference value storage;
●Power autonomy of 100 hours;
●One-year warranty and Three-year recommended calibration interval
|
Product Description |
|||
|
SPECIFICATIONS |
|||
|
Model |
AOP100T |
AOP100M |
AOP100C |
|
Measurement Range(dBm) |
+10~ -70 |
+18~ -60 |
+26~ -50 |
|
Accuracy * |
±0.2 dB |
||
|
Calibrated Wavelengths |
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm |
||
|
Resolution |
0.01dB |
||
|
Connector |
FC & 2.5mm UPP, (option: SC, ST) |
||
|
Reference Value storage |
Yes |
||
|
Automatic Power Off |
No operation in 10 minutes (can be canceled), Low battery energy |
||
|
Build in VFL (Optional) |
1mW or 10mW or customize |
||
|
Data Storage |
40 traces |
||
|
Battery Charge |
Yes |
||
|
Wave ID (Optional) |
Yes |
||
|
Data Transfer (Optional) |
Yes |
||
|
Real Time Monitor (Optional) |
10minutes to 360 days, interval: 0.5s, 2s, 15s, 60s, 180s, 600s |
||
|
Battery Life |
Above 100 hours |
||
|
Power Supply |
AA * 2 batteries or AC/DC power supply adapter |
||
** at 20±3℃, CW, with FC connector, -10dBm
For 850nm, the Min. Power measurement: -50dBm@AOP100T, -30dBm@AOP100C
|
GENERAL SPECIFICATIONS |
|
|
Size(H*W*D) |
170mm * 97mm * 38mm |
|
Weight |
About 380g |
|
Storage Temperature |
-20 -- +60℃ , < 90%RH |
|
Operating Temperature |
-10 -- +50℃, < 90%RH |
|
ACCESSORIES |
|
|
Standard |
Optional |
|
User's manual*1 |
SC interchangeable adapter*1 |
|
Certificate of Calibration*1 |
ST interchangeable adapter*1 |
|
Carrying bag*1 |
AC/DC adapter*1 |
|
Hardware and software of PC connection*1 |
|
