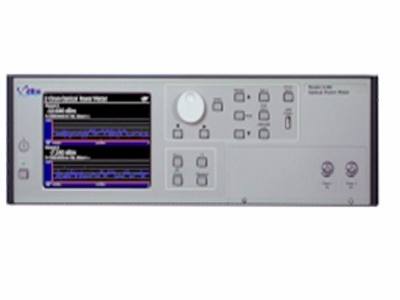

Optical Power Meter (Model 4100)
Fast, Accurate, Affordable
The Model 4100 Optical Power Meter offers an unparalleled combination of speed, accuracy, repeatability, ease of use, and low cost.
High Speed
The Model 4100 combines 100,000 rps optical power meter modules with a powerful processor that can handle the measurement speed. With two channels, each channel still measures at 100,000 rps.
Wide Dynamic Range
The Model 4100 with Option 202 measures from +10 dBm to -95 dBm—for a full dynamic range of 105 dB.
Wide Dynamic Range at Full Speed
Even more important than full dynamic range is the range which can be achieved while making a measurement without stopping to change range. Most meters take ~20 ms to change range. The Model 4100 has a large dynamic range of >65 dB at full speed—in most cases eliminating the need to change range.
Low Polarization Dependency
The Model 4100 with Option 202 utilizes a unique patented technology to achieve < 0.0015 dB polarization dependency of measurement. This allows for error-free measurement, even with highly polarized light.
Low Connection Variation
Repeatability is a major obstacle in obtaining consistent results in the lab and in eliminating discrepant materials in production. The Model 4100 provides repeatability of ±0.005 dB even with widely varying launch conditions
Clear, Bright Display
The 4” x 6” VGA color display makes it easy to understand and analyze measurements directly on the Model 4100 without the need to export to a PC. Trends, drifts, noise, and perturbations are all clearly indicated on the graphical display. The wide viewing angle makes results visible from anywhere in the lab.
Fast Data Transfer to Excel
The removable USB flash memory drive makes transferring data to Excel or other analysis software very simple. Built-in Ethernet and GPIB communications make remote data retrieval simple: Connect to a network and retrieve the data from a desktop or from a remote location over a VPN.
Convert to Optical Workbench
The Model 4100 can be converted into a Model 4500 Optical Workbench—complete with polarization controller options, attenuators, switches and sources. For more information, see the Model 4500 Optical Workbench.
