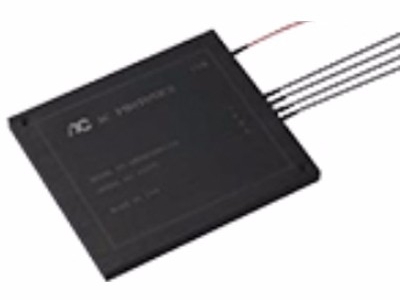

泵浦合束器1x2 / 1x4
ACP’sPumpCombinersaretypicallyneededinEDFAandRamanamplifier,offerexceptionalperformanceandreliabilityatveryaffordableprices.TheyfeatureextremelylowInsertionLossandhighChannelIsolation.AllACPhoto
- 產(chǎn)品名稱： 泵浦合束器1x2 / 1x4
- 合作廠商： ACP
詳細(xì)信息
ACP’s Pump Combiners are typically needed in EDFA and Raman amplifier, offer exceptional performance and reliability at very affordable prices. They feature extremely low Insertion Loss and high Channel Isolation.
All AC Photonics' products are Telcordia qualification tested.
Features
◆Low Insertion Loss
◆High Channel Isolation
◆High Stability and Reliability
◆Small Package Size
◆Low Cost Solution
◆Flexible Specified Channel Spacin
Applications
◆Raman Amplifier
◆EDFA
◆Fiber Optical Instruments
Performance Specifications
|
Parameter |
Specifications |
|
Operation Wavelength |
1420nm to1500nm |
|
Channel Spacing |
5nm to10nm or specified |
|
Insertion Loss (Max.) @ Central Wavelength ±1nm |
≤0.5dB |
|
Isolation (Min.) |
14dB |
|
Polarization Dependent Loss |
≤ 0.10dB |
|
Directivity |
≥ 55dB |
|
Return Loss (Min.) |
≥ 55dB |
|
Optical Power |
≤ 1.5W |
|
Operating Temperature |
-20 to +70°C |
|
Storage Temperature |
-40 to +85°C |
|
Package Dimensions |
Ø5.0 x L75mm |
Performance Specifications
|
Parameter |
Specifications |
|
Operation Wavelength |
1420nm to1500nm |
|
Channel Spacing |
5nm to10nm or specified |
|
Insertion Loss (Max.) @ Central Wavelength ±1nm |
≤0.8dB |
|
Isolation (Min.) |
14dB |
|
Polarization Dependent Loss |
≤ 0.20dB |
|
Directivity |
≥ 55dB |
|
Return Loss (Min.) |
≥ 55dB |
|
Optical Power |
≤ 1.5W |
|
Operating Temperature |
-20 to +70°C |
|
Storage Temperature |
-40 to +85°C |
|
Package Dimensions |
L120mm x W80mm x H10mm |
