產品簡介：ACPhotonics的緊湊粗波分復用（CCWDM）利用薄膜涂覆技術和非焊劑金屬接合微光學包裝專有設計。創新的內部整合的小型化元件和彎曲不敏感光纖提供了優良的熱穩定性，低插入損耗，高通道隔離，寬通帶，低紋波和無膠光通路進行獨特的載體托盤包裝采用單端輸出和雙端輸出實現超小型封裝，為客戶提供高水平的整合。性能參數ParameterSpecificationsMux/DemuxChannelN
產品簡介：

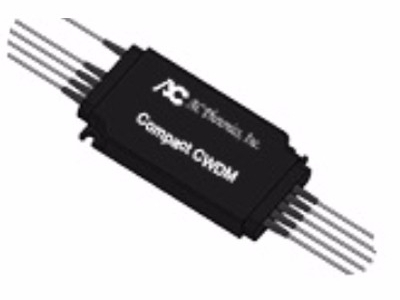

AC Photonics的緊湊粗波分復用（CCWDM）利用薄膜涂覆技術和非焊劑金屬接合微光學包裝專有設計。創新的內部整合的小型化元件和彎曲不敏感光纖提供了優良的熱穩定性，低插入損耗，高通道隔離，寬通帶，低紋波和無膠光通路進行獨特的載體托盤包裝采用單端輸出和雙端輸出實現超小型封裝，為客戶提供高水平的整合。
性能參數
|
Parameter |
Specifications |
||||
|
Mux/Demux |
|||||
|
Channel Number |
4 |
4+1 (with 1310nm port) |
8 |
8+1 (with 1310nm port) |
|
|
Operating Wavelength |
1260nm to 1620nm |
||||
|
Channel Spacing |
20GHz |
||||
|
Channel Passband |
CWDM ±7.0 |
||||
|
Insertion Loss |
Channels |
≤ 1.4dB |
≤ 1.5dB |
≤ 1.5dB |
≤ 1.6dB |
|
1310nm Channel |
≤ 1.2dB |
≤ 1.2dB |
|||
|
Upgrade Port |
≤ 1.5dB |
≤ 1.7dB |
≤ 1.6dB |
≤ 2.0dB |
|
|
Channel Ripple |
≤ 0.5dB |
||||
|
Isolation (Demax Only) |
Adjacent |
≥ 30dB |
|||
|
Non-adjacent |
≥ 45dB |
||||
|
Polarization Dependent Loss |
≤ 0.20dB |
||||
|
Polarization Mode Dispersion |
≤ 0.20ps |
||||
|
Directivity (Mux Only) |
≥ 55dB |
||||
|
Return Loss |
≥ 45dB |
||||
|
Fiber Type |
Corning SMF-28e |
||||
|
Operating Temperature |
0 to +70°C |
||||
|
Storage Temperature |
-40 to +85°C |
||||
|
Package Dimensions |
L53.8mm x W28mm x H8.0mm |
||||
