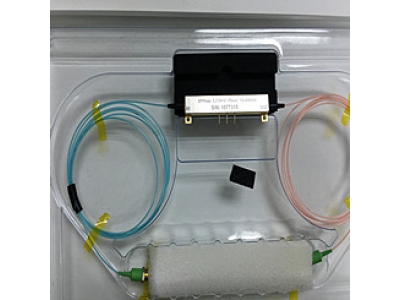

1310nm LiNbO3 Phase Modulator
Description
LiNbO3 phase modulator, made with the proton exchange or Tiindiffusion method. It features low insertion loss, low drive voltage, low back reflection, wide wavelength range, and high efficiency. It is ideal for optical chirp control in high speed fiber communication systems, high-speed phase control for sensor systems, phase shift key modulation for coherent communication systems, optical frequency shifting for measurement systems, and stimulated Brillouin scattering (SBS) reduction for analog fiber optic systems.
Features
● Low Insertion Loss
● Low Drive Voltage
● Small Package
● Long life and High realibility
Applications
● Fiber sensor application
● Coherent optical communication field
● Quantum secure communication
Specifications
|
Parameter |
Unit |
Value |
|
Center Wavelength |
nm |
1310nm/1550nm |
|
Input power |
mw |
≤20 |
|
Insertion loss |
dB |
4.0 |
|
Bandwidth |
MHZ |
≥300 |
|
Maxium input voltage |
V |
≤15 |
|
Half wave Voltage(@1KHz，TE) |
V |
≤4.0 |
|
Additional Intensity Modulating |
- |
≤0.3% |
|
Optical Return Loss |
dB |
≥45 |
|
Fiber Type |
- |
PM1550/1310 Panda Fiber or SMF28E Fiber |
|
Fiber Tensile Load |
N |
5 |
|
Electrical interface |
- |
3 PIN |
|
Operating Temperature |
°C |
-45~80 |
|
Storage Temperature |
°C |
-55~85 |
Full temeperature specifications
|
Parameters |
unit |
Typ value |
|
Operation temperature |
℃ |
-45~+85 |
|
△Insertion |
dB |
≤0.5 |
|
PM Pigtail Crosstalk |
dB |
≤-23 |
Note:
1. Specifications are for device without connectors; Specifications may change without notice.
2. To add connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB Lower, Connector key is aligned to slow axis.
3. Devices for higher optical power or with other type fiber or consigned fiber are also available.
Package Dimension
