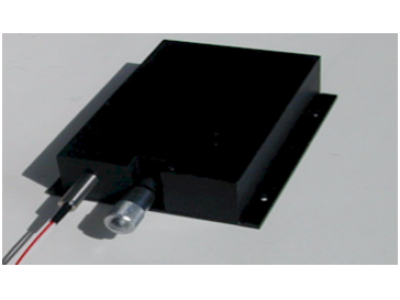

2um波段 可調諧光纖濾波器
OEFTF-300-2000 series filter is designed for operating in the range 1800~2100 nm. There is option to customize the filter bandwidth.
- 產品名稱： 2um波段 可調諧光纖濾波器
- 合作廠商： OELAND
- 產品型號： OEFTF-300-2000
詳細信息

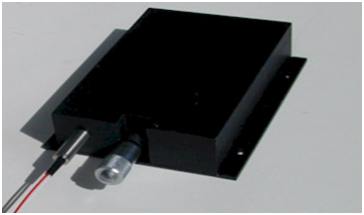

產品名稱：Tunable Optical Filter (For 2 micron wavelength range)
產品簡介:
OEFTF-300-2000 series filter is designed for operating in the range 1800~2100 nm. There is option to customize the filter bandwidth.
|
產品特點：
Wide wavelength range operation
Tuning upto 100nm
Customized bandwidth
Flat top pass band transmission
Low PDL and insertion loss variation
High out-band suppression |
應用領域：
|
指標規格：
|
{C}Parameter |
OEFTF-300-2000 |
|
Wavelength range (nm) |
1800 ~ 2100 |
|
Tuning range (nm) |
upto 100 |
|
Filter Bandwidth (nm) |
1-10 |
|
PDL (dB) |
< 0.25 |
|
Out band suppression (dB) |
> 40 |
|
Max optical power (mW) |
< 500 |
|
Fiber type |
SMF, PM fiber or customer specified |
|
Pigtail termination |
FC, ST, SC or customer specified |
|
Control interface |
USB 2.0 standard or customer specify |
訂購信息：
請聯系我們的銷售人員
電話：400-650-9011
電話：010-62669779
Email: [email protected]
