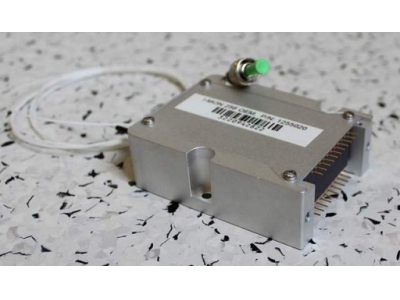

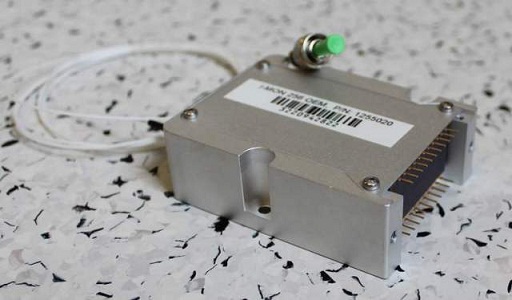

The I-MON OEM Interrogation Monitors are designed for customers who want to make their own electrical interface, either directly to the diode array or via an SPI-like interface. This is ideal for customers who want full control of all electronics and software.
The I-MON 256 OEM and 512 OEM are from our new OEM series using a high speed InGaAs detector array for sensing at 1550 nm. The detectors are pin compatible, which means that electronics operating the 256 OEM can easily be designed to also operate the 512 OEM.
The I-MON 850 OEM offers a cost effective, yet high performing, sensing solution for 850 nm FBG’s.
The I-MON 80 D is well suited for medium accuracy applications in the 1550 nm range where cost, weight and space are important.
MON 256 OEM / 512 OEM
I-MON 850 OEM
I-MON 80D
All our I-MON OEMs are offered with a Developer’s Kit to get started plug and play. You will find more information about the Developer’s Kit in the links above.
I-MON OEM Product Selector Guide
|
參數 |
單位 |
I-MON 256 OEM |
I-MON 512 OEM |
I-MON 850 OEM |
I-MON 80D |
|
波長范圍 |
nm |
1525-1570 |
1510-1595 |
823-878 |
1529-1561 |
|
Max number of sensors |
- |
37 |
70 |
45 |
16 |
|
Interface |
- |
Directly to pins of the diode array |
11 pin SPI –like |
||
|
Diode array |
- |
Hamamatsu G11620 series |
SONY ILX511B |
80-element diode array |
|
|
Number of pixels |
- |
256 |
512 |
2048(*) |
80 |
|
最大速率 |
Hz |
35,000 |
17,000 |
100 |
2500 |
|
Accuracy |
- |
High |
High |
High |
Medium |
|
尺寸 |
mm |
21x50x66 |
23x58x71 |
23x58x72 |
18x46x70 |
(*) Only 1024 pixels are illuminated
